嵌入式隐藏天花高增益抗光幕-Ti

高端家庭影院设计的抗光、高对比度嵌入式全隐藏天花电动拉线幕。

✨ 画质核心优势

• 抗环境光干扰：过滤掉墙壁、天花板等漫反射光对画面的影响，使RGB三原色更纯净。

• 白天可用：在非阳光直射的客厅环境下，配合高亮度投影仪，可以做到不拉窗帘也能看清画面。

• 颜色不泛白：在白天或开灯环境下，色彩依然保持浓郁，不会像白幕那样明显发白、发灰。
• 消除纹理感：优质抗光幕表面细腻，避免了低端幕布因粗糙纹理导致的画面颗粒感。

• 黑位更深：灰基或黑基结构能吸收环境光反射，让黑色画面“沉得下去”，避免普通白幕在亮光下呈现灰色雾面感。

• 层次感更强：暗部细节更清晰，画面立体感和景深感明显优于白幕

🏗️ 结构与工艺

• 航空级铝合金材质：壳体与转轴均采用航空级铝合金，坚固耐用、抗变形，长期使用不易下垂。

• 拉线平整技术：幕面经拉线系统绷平，有效消除卷边与波浪纹，保持长期平整如镜。

• 高性能静音电子限位管状电机：运行噪音低，升降平稳，适合卧室、影音室等安静环境。

• 868MHz无线遥控：信号穿透力强，无需对准即可操作，使用便捷。


🔧 安装与兼容性

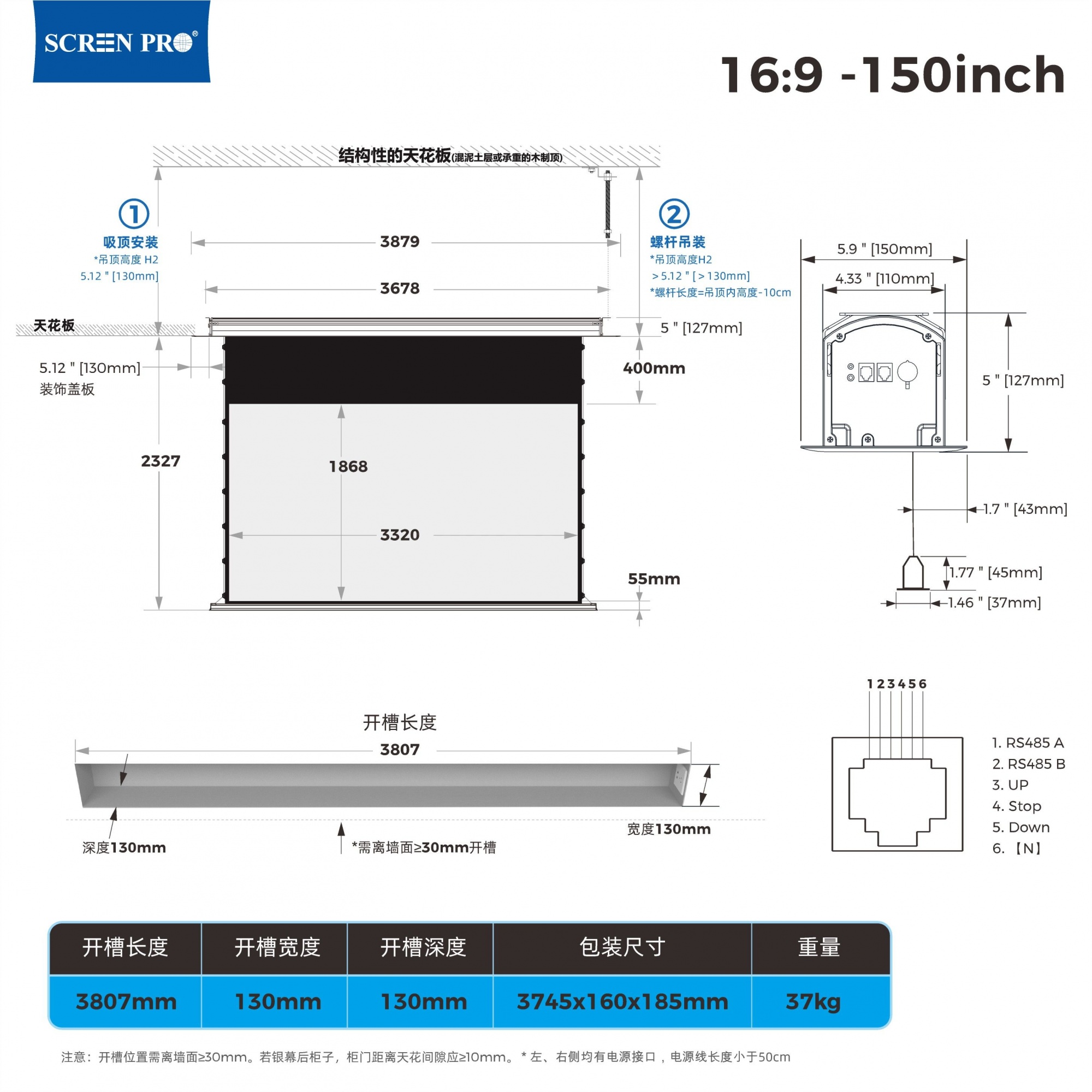

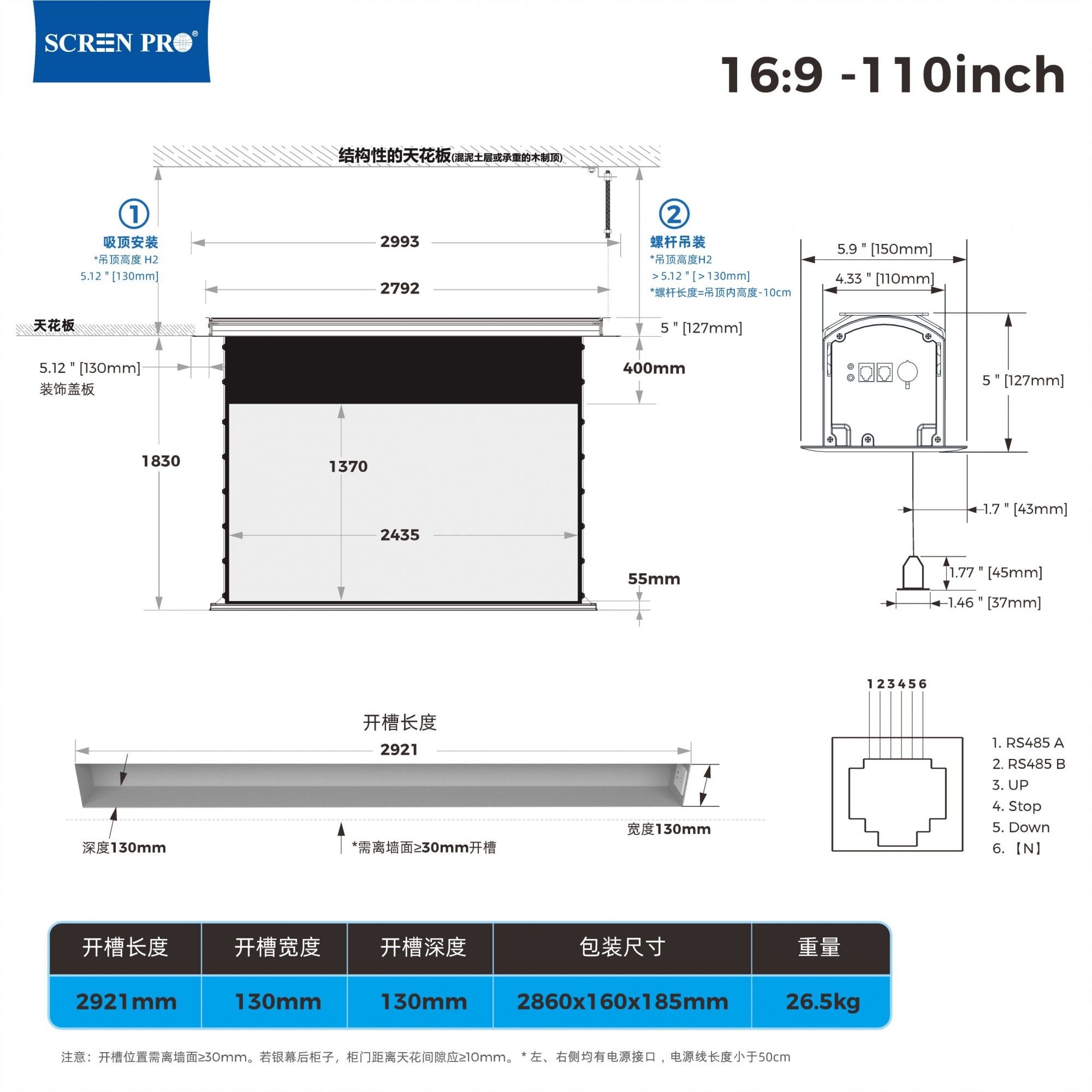

• 多种安装方式：吸顶安装、自由调节螺杆安装，适应不同空间布局。

• 灵活控制方式：

• 电子限位限位调节：遥控调节幕布升降行程，无需专业人员即可设置。

• 广泛投影兼容性：适配三色激光、长焦、短焦等多种投影机型。


8K长焦黑晶抗光幕-K8     ｜  8K Ambient light rejection Screen Fabric

幕布特点

黑晶抗光幕采用PVC、聚酯等材料作为基材，表面涂覆黑晶抗光涂层（呈深灰色），通过多次折射光线，降低反射干扰，在环境光干扰下仍能保持色彩鲜艳度和准确度，黑位扎实，金属质感与阳光感表现突出，能吸收80%以上的环境光（如灯光、自然光），尤其在常光环境下可减少画面发白、发灰现象，提升对比度和黑位表现，使画面层次感更鲜明。相比金属幕的高增益但窄视角、易产生光斑的特点，黑晶抗光幕更注重平衡，在保持较大视角（无太阳效应）的同时提升对比度，更适合家用环境。

适用环境：有灯光或自然光（300Lx）环境下使用

适配投影机：高流明4K、8K长焦投影机（投射比 ＞0.4）

适用场所：商务、学校、高端影院、家庭影院、办公会议、KTV等

幕布性能

Black Crystal anti-glare screen uses PVC, polyester and other materials as the base material, and is coated with black crystal anti-glare coating (dark gray) on the surface. It refracts light multiple times to reduce reflection interference, and can still maintain color vividness and accuracy under ambient light interference. It has a solid black level, outstanding metal texture and sunlight feeling, and can absorb more than 80% of ambient light (such as light, natural light). Especially in normal light environment, it can reduce the whitening and graying of the picture, improve the contrast and black level performance, and make the picture layering more distinct. Compared with the high gain but narrow viewing angle and easy to produce light spots of metal screen, black crystal anti-glare screen pays more attention to balance, while maintaining a larger viewing angle (no sun effect) while improving contrast, which is more suitable for home environment.

Applicable Products: Tab-Tensioned Motorized Screen ( TJ ) , In-ceiling Screen (TR), Fixed Frame Screen(F Series)

Applicable environment: Use in Ambient Lighting (300Lx) environment

                                           (general residential lighting, task lighting, and accent lighting, etc)

Matched Projector: 4K/8K short throw projector, long throw projector（Projector Throw Ratio ＞0.4)

Applicable Places: Commercial, education, high-end cinema, home theater, conference, KTV, etc.

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface

高增益金属抗光幕-8K       ｜ 8K Ambient light rejection Screen Fabric

幕布特点

8K抗光幕是一种新型的投影用抗光光电复合材料，是在PVC中均匀加入纳米光电反光材料，经过一系列特殊工艺处理加工而成。在入射光的照射下，激发纳米光电材料产生倍增益光发射，从而产生更高增益。其既有比金属3D幕更强的立体层次感，又有比灰幕更高的增益效果，还有良好的抗光性能。是集众多传统幕布材料的优点于一身的高科技材料。具有高增益、视场角大、高平整度、抗光性能佳、画面立体层次感强、画质更细腻、对比度更佳、色彩更鲜艳、同时还兼具良好的抗紫外线光等特性。搭配4K、8K投影机，其能呈现出无与伦比的精彩投影效果，能带给观众一个美轮美奂的色彩视界，让观众充分享受优质清晰画面带来的视觉盛宴。

适用环境：有灯光下的亮光（300Lx）环境下使用

适配投影机：4K、8K短焦、长焦投影机（投射比 ＞0.4）

适用场所：商务、学校、高端影院、家庭影院、办公会议、KTV等

幕布性能

8K is a new kind of anti-light photoelectric composite material used for projection. It is made by adding NANO photoelectric reflective material uniformly into PVC and through a series of special processes. It has high gain, large field Angle, high flatness, good anti-light performance, 3D sense of the picture, more exquisite picture quality, better contrast, more vivid colors, and also has good anti-ultraviolet light characteristics. It’s a collection of traditional fabric in the advantages of a high-tech materials. Matching with 4K and 8K projectors, it can present an incomparable wonderful projection effect, bring the audience a gorgeous color horizon, and let the audience fully enjoy the visual feast brought by high-quality and clear pictures.

Applicable Products: Tab-Tensioned Motorized Screen ( TJ ) , In-ceiling Screen (TR), Fixed Frame Screen(F Series)

Applicable environment: Use in Ambient Lighting (300Lx) environment

                                           (general residential lighting, task lighting, and accent lighting, etc)

Matched Projector: 4K/8K short throw projector, long throw projector（Projector Throw Ratio ＞0.4)

Applicable Places: Commercial, education, high-end cinema, home theater, conference, KTV, etc.

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface
