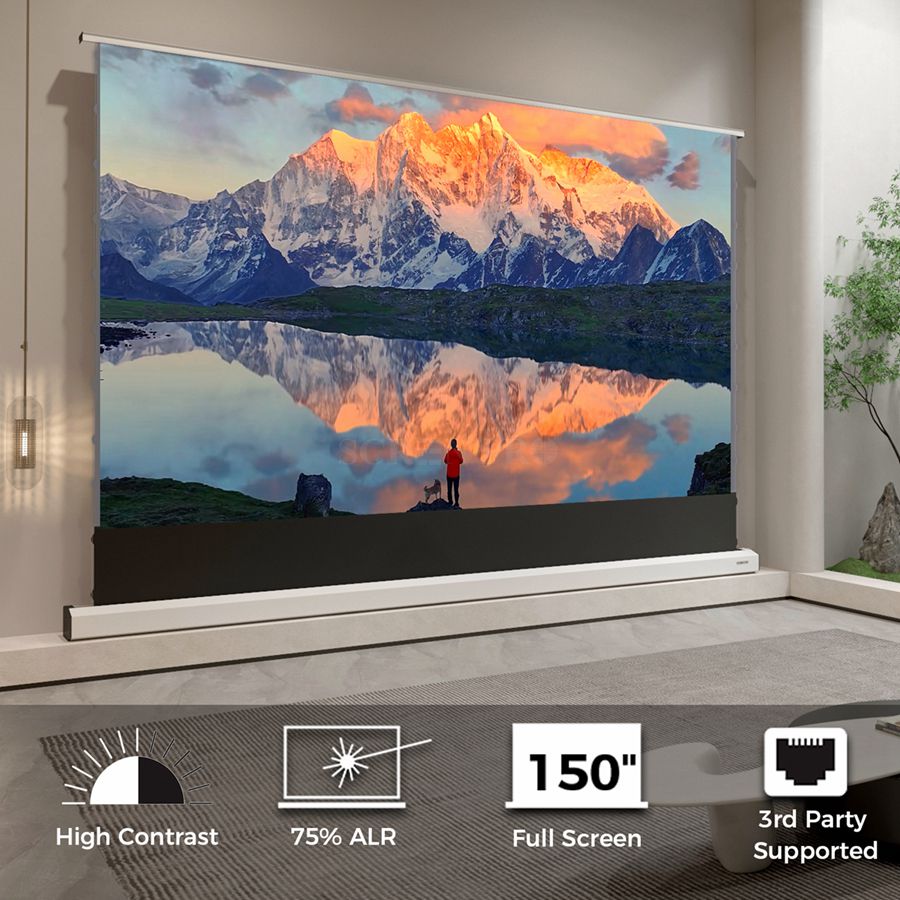

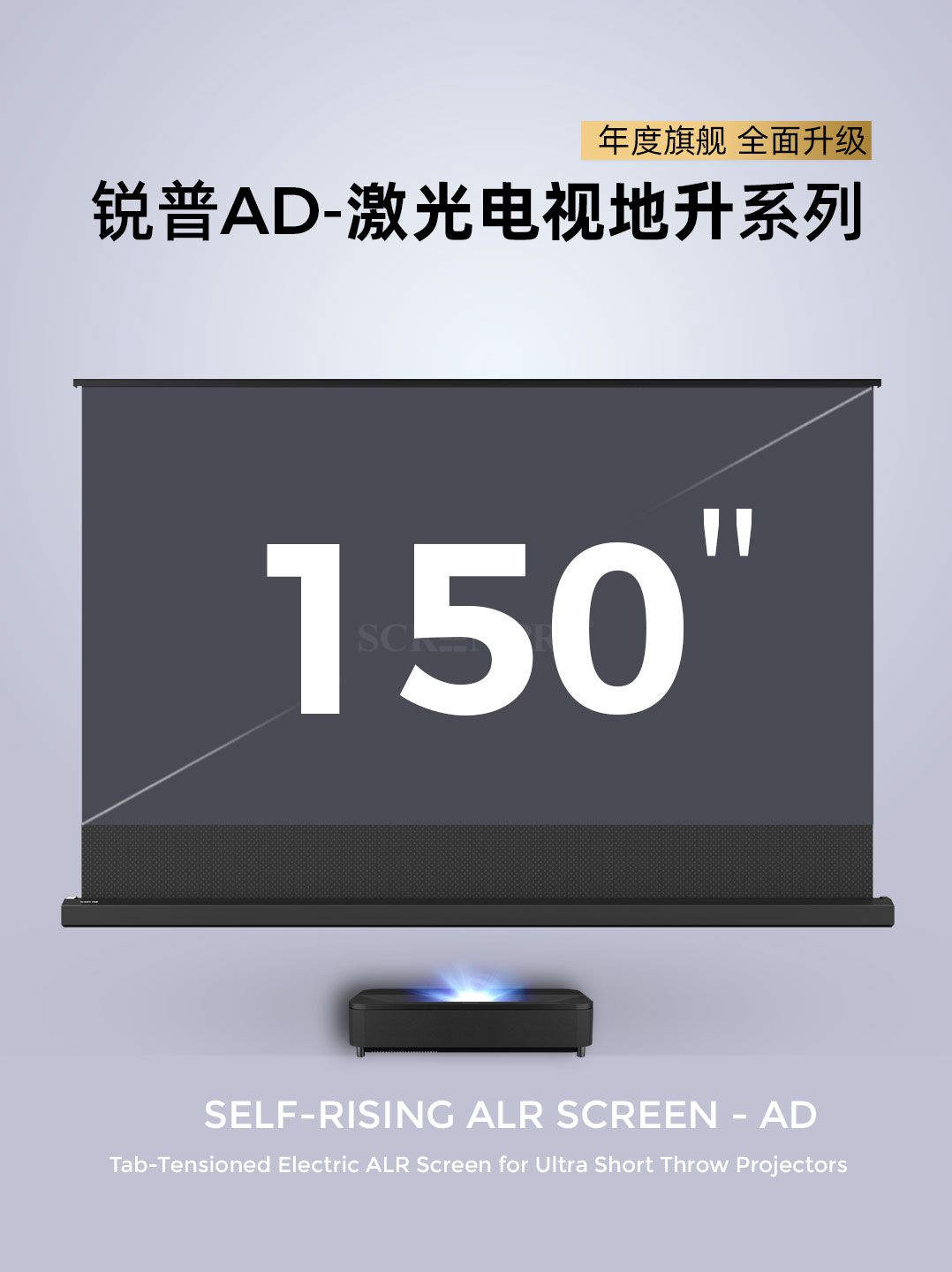

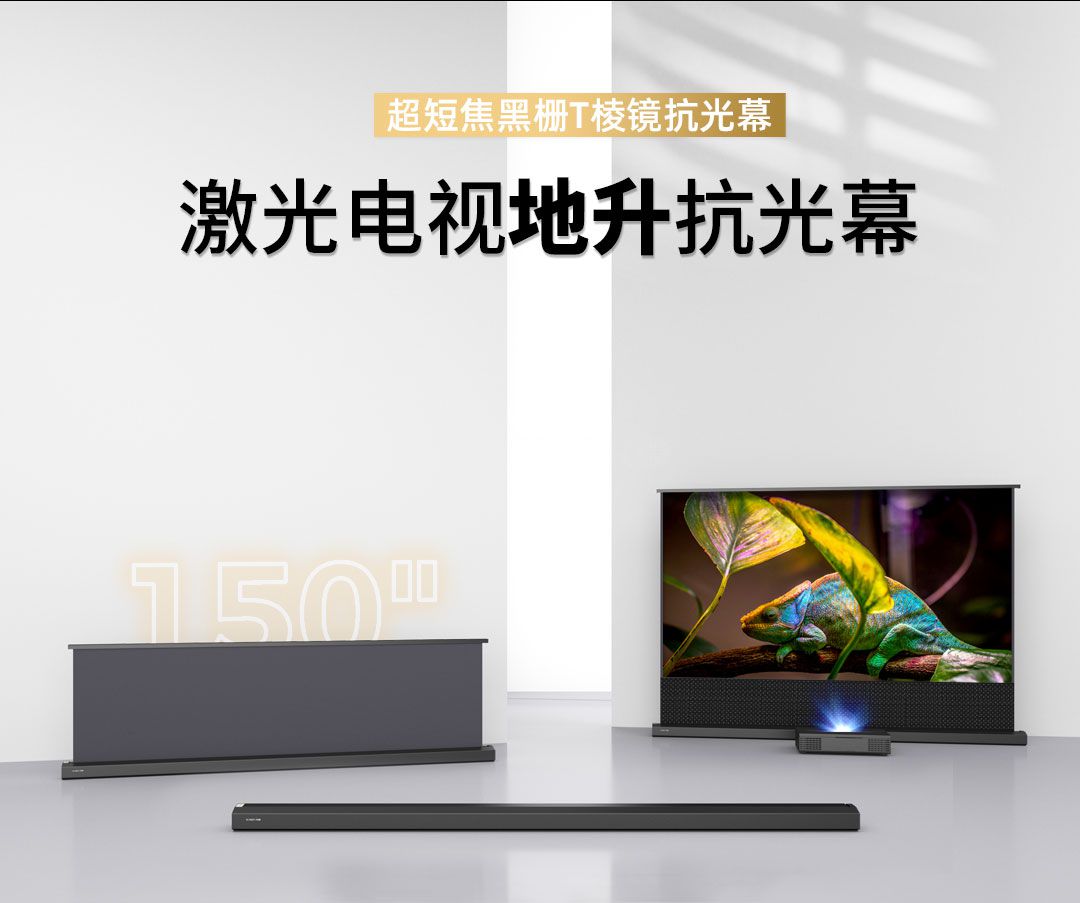

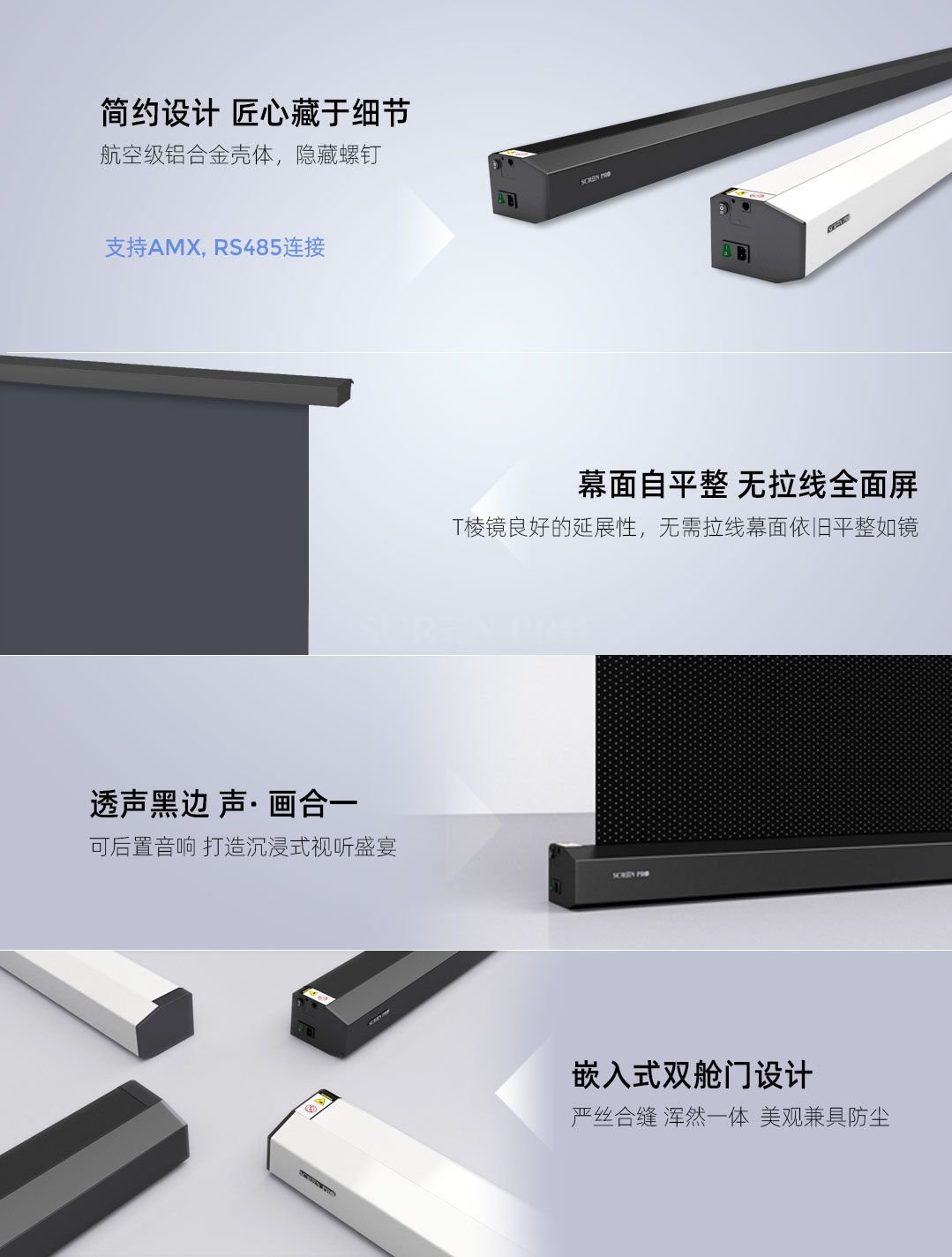

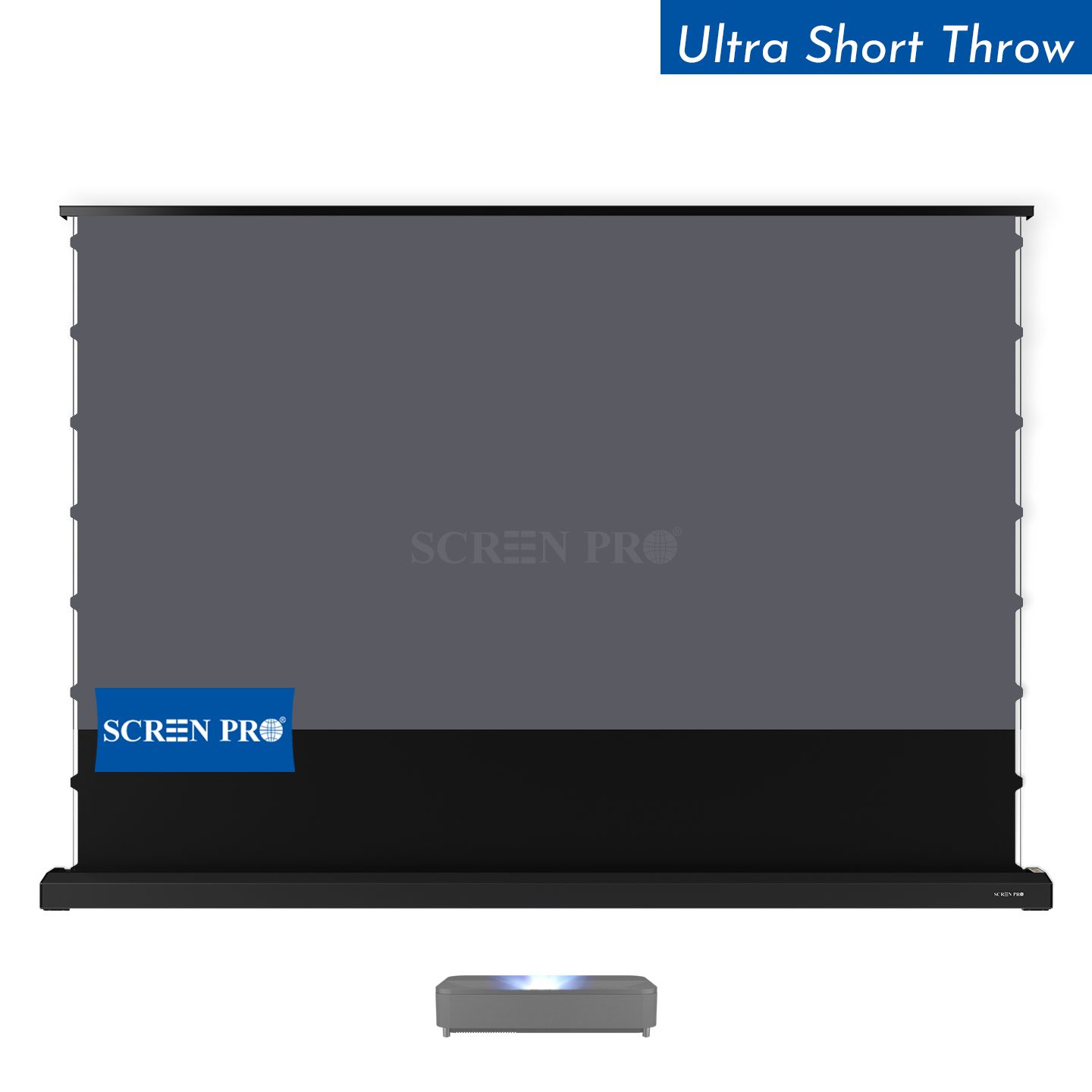

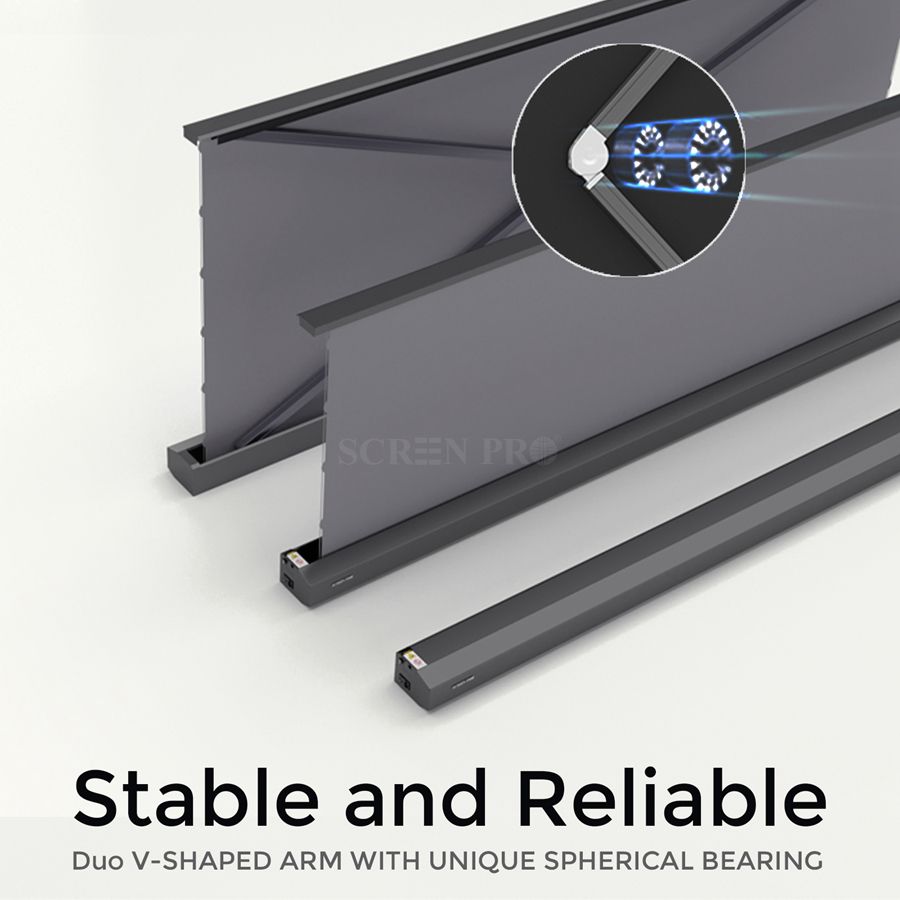

超短焦激光电视黑栅电动地升抗光幕-AD

点击《3D DIY》按钮，更换幕布或罩壳颜色，来创建您得专属幕布吧！

SP-超短焦T棱镜抗光幕   ｜  ALR Fabric for UST Projector

幕布特点

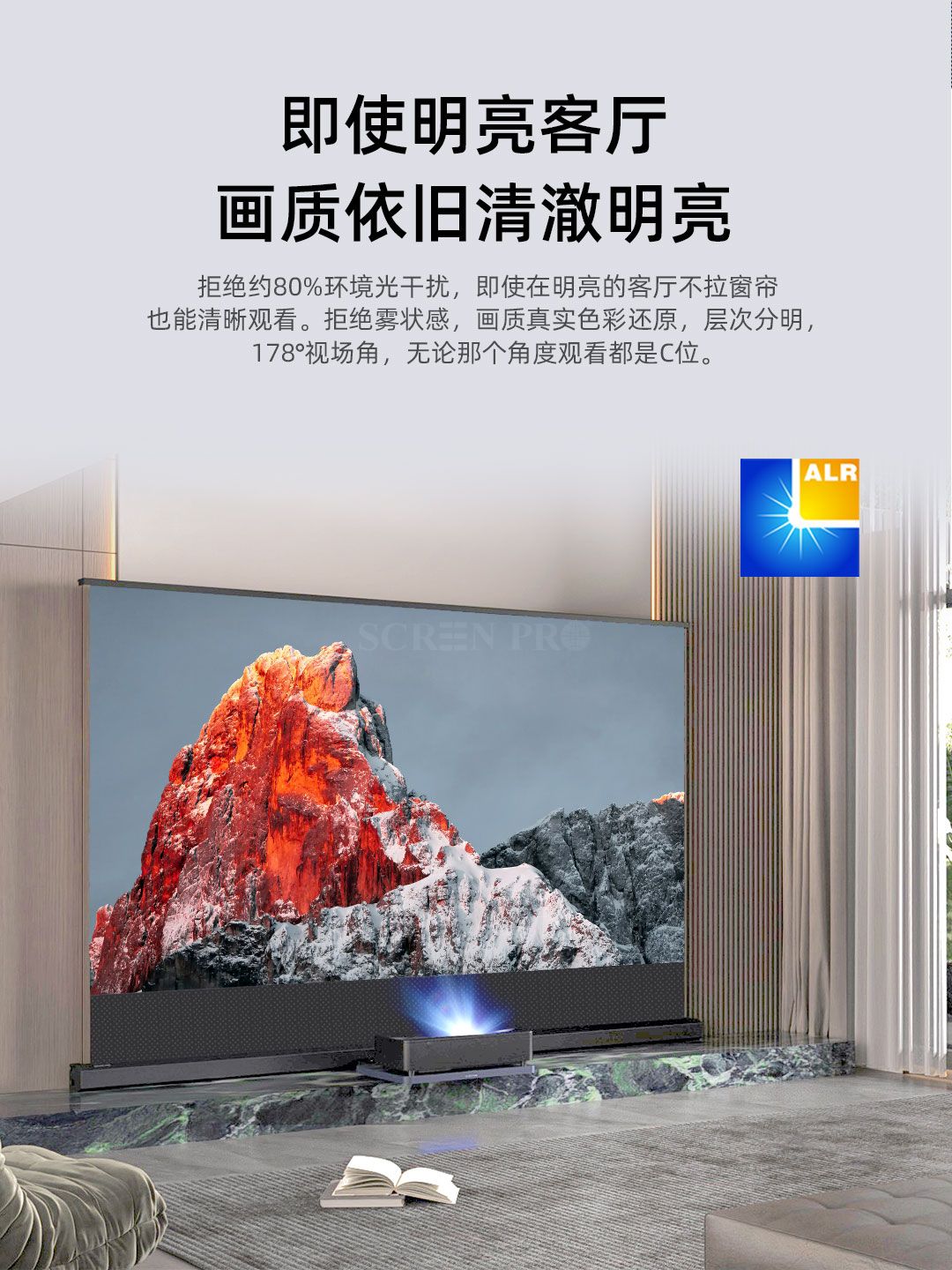

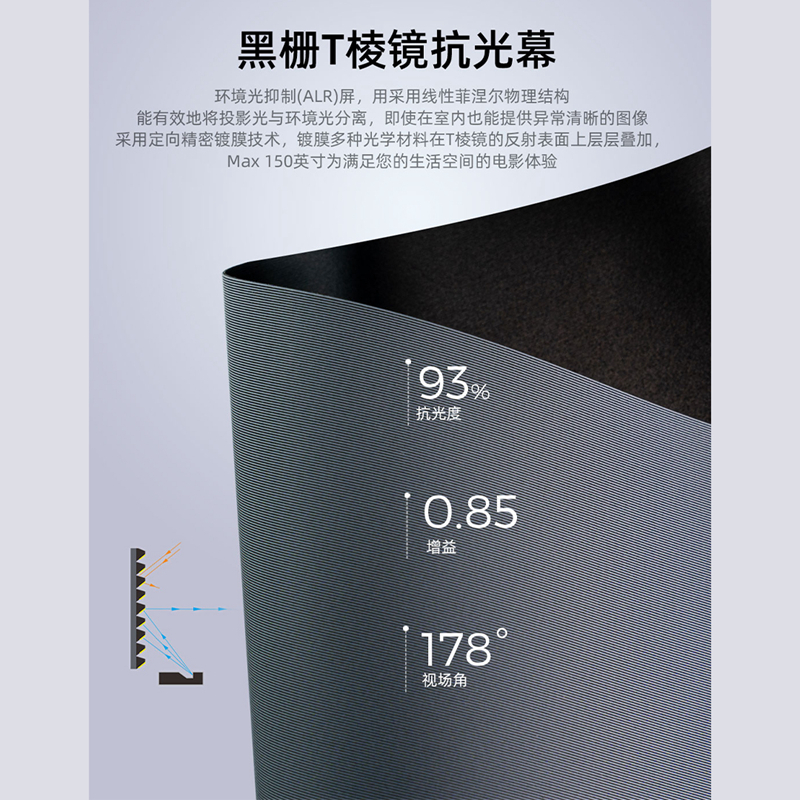

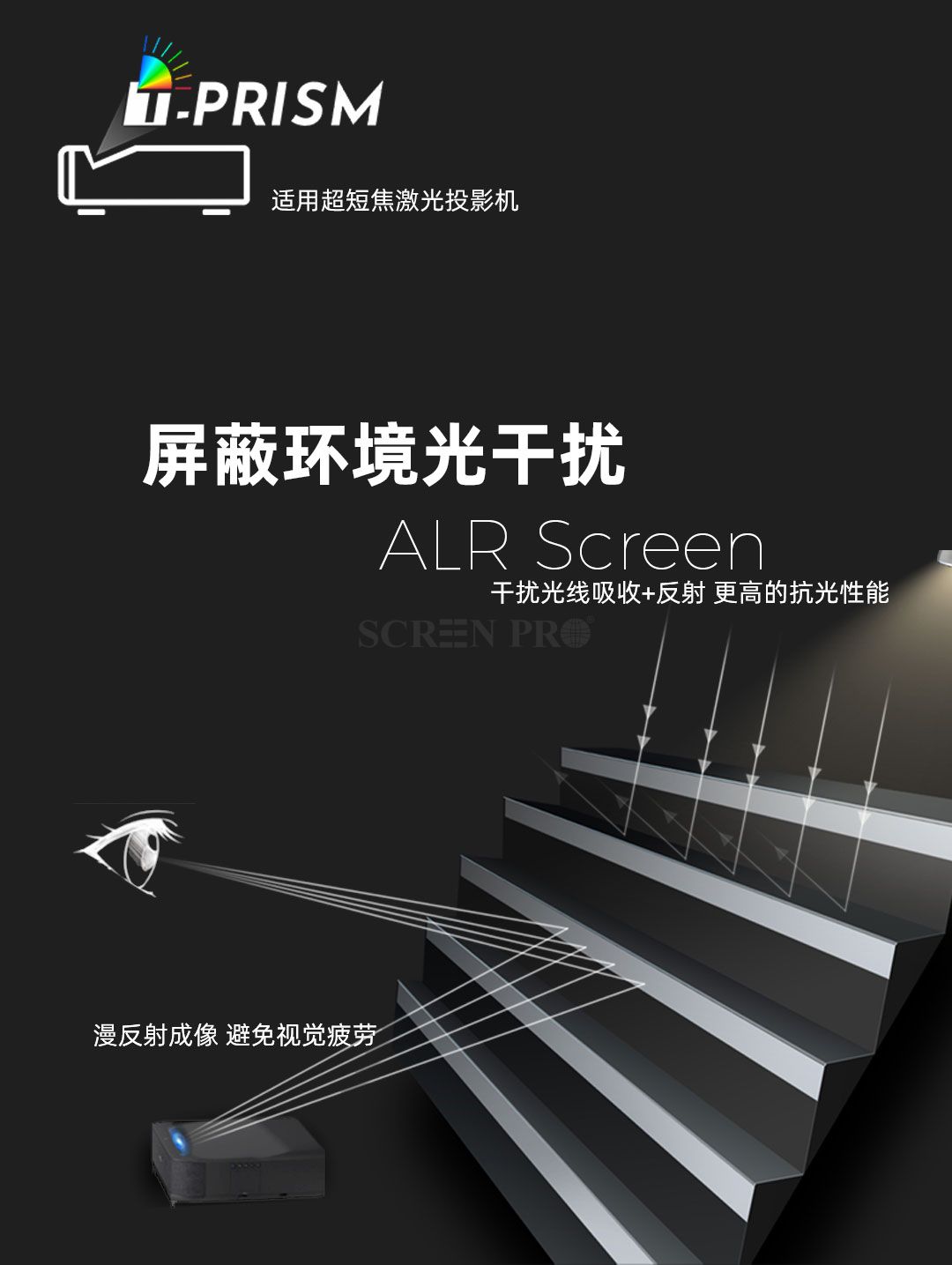

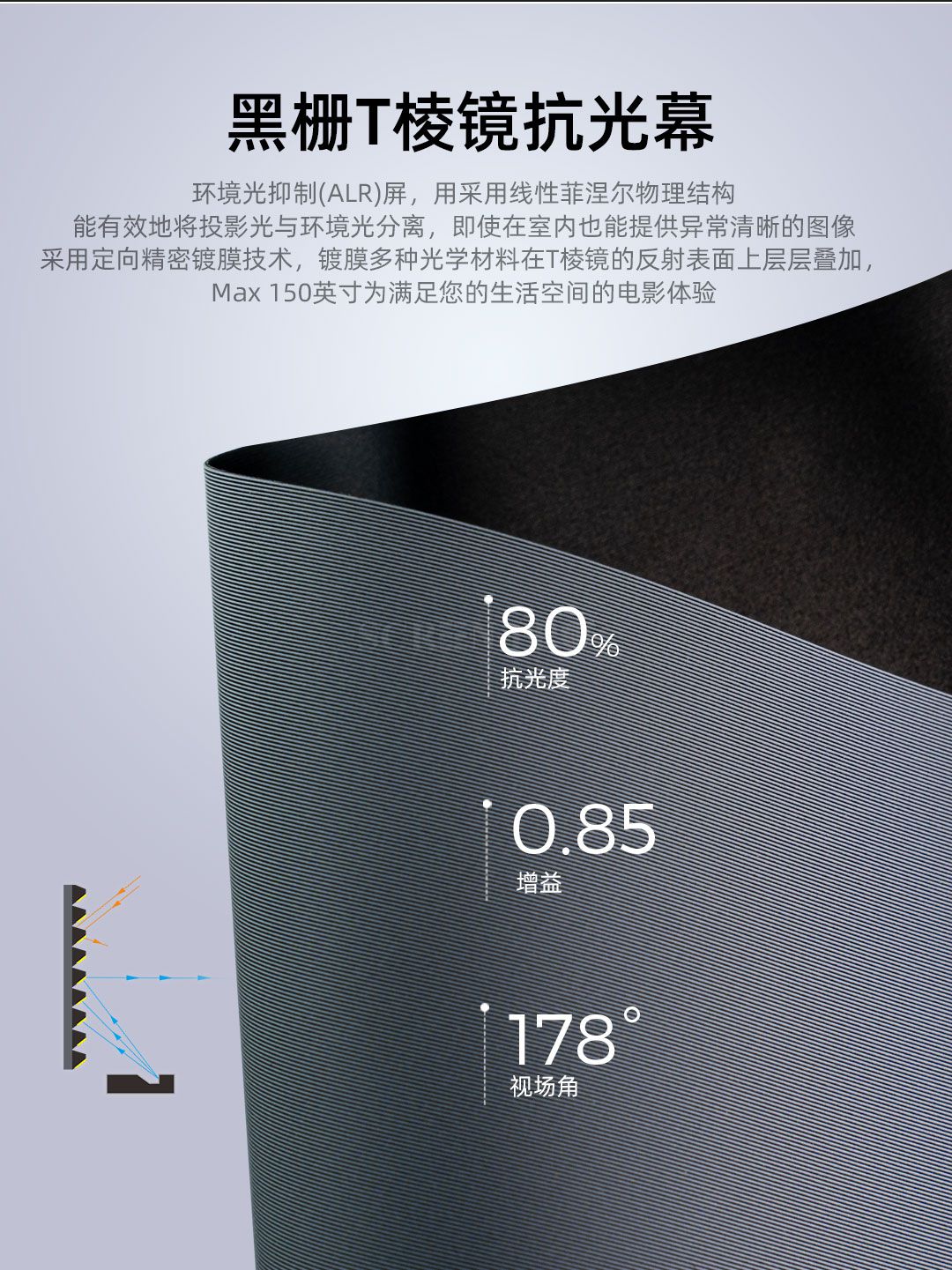

第2代T棱镜抗光幕采用黑栅物理结构和原理，将环境光和超短焦投影机光线反射面自动隔离，投影光最大限度（约86％）反射到观影者眼睛，环境光最大限度（约90％）被吸收，从而达到抗光的效果和目地。锐普充分利用日本的先进定向多层涂覆设备和技术，结合锐普研发的纳米光学反光材料进行有效组合和应用，将六层不同功能的涂层，均匀涂覆于反射面，从而实现了0.85增益，大视场角（178°）、高对比度（20000:1）将色彩明度与饱和度、还原度达到比较理想的平衡状态，画质的细腻度也得到有效提升，充分满足了4K*8K UHD*HDR高清超短焦投影机对画质的需求。即使在照度500Lx的客厅环境光下，也能展现出超大屏LCD的画质水平（当然，投影画质与投影机的性能有直接关系，抗光屏幕是投影画质的助推器）。长时间观影更能体现投影画面的优势—护眼功能（投影光是漫反射光—更柔和、更均匀，LCD液晶平板电视是直射光）。T-棱镜超短焦抗光幕基材，由于采用耐候性及卷曲性能良好PVC复合材料，以及基材特殊加工工艺，保证了T棱镜超短焦抗光幕布具有更多的优势。

适用环境：有自然光（300Lx）环境下使用

适配投影机：激光短焦和超短焦投影机（投射比 ＜1.0）

适用场所：适用于客厅娱乐、高端家庭影院、小型会议等场所

幕布性能

The second-generation SP-T-Prism anti-light fabric adopts the physical structure and principle of Fresnel, automatically isolate the ambient light and the light reflection surface of the ultra-short-focus projector, the ambient light is absorbed to the maximum (about 90%), to achieve the effect and purpose of anti-light. The projection light has reflected the viewer to the maximum (about 86%)

The nano-optical reflective material developed by the SCREENPRO is effectively combined and evenly applied 6 layers of coatings with different functions are coated on the surface, thereby achieving high gain (0.85gain), large field of view (178°), and high contrast (1: 20000). Achieve an ideal balance of color brightness, saturation, restoration, and the fineness of the image quality. Effectively improved to fully meet the image quality requirements of 4K, 8K UHD, and HDR high-definition ultra-short-throw projectors. Even under the bright ambient light of the living room with an illumination of 500Lx (*the projection picture quality is directly related to the projector's performance, and the anti-light screen is a bonus of the projection picture quality).

The advantage of the screen is the Eye Protection function (the projection light is diffuse reflection light softer and more uniform, and the LCD liquid crystal flat-panel TV is direct light). Due to the use of the composite material of TPU and PVC with good weather resistance and curling performance, as well as the unique processing technology of the base material, ensures that the T-prism ultra-short-throw anti-light fabric has more advantages:

Applicable Environment: used in a bright (500Lx) environment with natural light or lighting

Compatible Projectors: Laser short-throw, Ultra-short-throw projectors (throw ratio<1.0)

Applicable: Living room, Entertainment room, High-end home theater, Conferences, etc.

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface

8K长焦黑晶抗光幕-K8     ｜  8K Ambient light rejection Screen Fabric

幕布特点

黑晶抗光幕采用PVC、聚酯等材料作为基材，表面涂覆黑晶抗光涂层（呈深灰色），通过多次折射光线，降低反射干扰，在环境光干扰下仍能保持色彩鲜艳度和准确度，黑位扎实，金属质感与阳光感表现突出，能吸收80%以上的环境光（如灯光、自然光），尤其在常光环境下可减少画面发白、发灰现象，提升对比度和黑位表现，使画面层次感更鲜明。相比金属幕的高增益但窄视角、易产生光斑的特点，黑晶抗光幕更注重平衡，在保持较大视角（无太阳效应）的同时提升对比度，更适合家用环境。

适用环境：有灯光或自然光（300Lx）环境下使用

适配投影机：高流明4K、8K长焦投影机（投射比 ＞0.4）

适用场所：商务、学校、高端影院、家庭影院、办公会议、KTV等

幕布性能

Black Crystal anti-glare screen uses PVC, polyester and other materials as the base material, and is coated with black crystal anti-glare coating (dark gray) on the surface. It refracts light multiple times to reduce reflection interference, and can still maintain color vividness and accuracy under ambient light interference. It has a solid black level, outstanding metal texture and sunlight feeling, and can absorb more than 80% of ambient light (such as light, natural light). Especially in normal light environment, it can reduce the whitening and graying of the picture, improve the contrast and black level performance, and make the picture layering more distinct. Compared with the high gain but narrow viewing angle and easy to produce light spots of metal screen, black crystal anti-glare screen pays more attention to balance, while maintaining a larger viewing angle (no sun effect) while improving contrast, which is more suitable for home environment.

Applicable Products: Tab-Tensioned Motorized Screen ( TJ ) , In-ceiling Screen (TR), Fixed Frame Screen(F Series)

Applicable environment: Use in Ambient Lighting (300Lx) environment

                                           (general residential lighting, task lighting, and accent lighting, etc)

Matched Projector: 4K/8K short throw projector, long throw projector（Projector Throw Ratio ＞0.4)

Applicable Places: Commercial, education, high-end cinema, home theater, conference, KTV, etc.

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface

MW-高清弹性白/黑软幕  ｜   Matte White Screen Fabric

幕布特点

MW系列高清弹性白幕是由白/黑两种改良性PVC经压延、复合而成。黑色PVC主要是阻光作用（防止光线透射出去），白色PVC表面压制成具有良好漫反射效应的特殊纹路，白/黑PVC均具有良好的延展性、可恢复性、耐候性、阻燃性、防潮、防霉、抗紫外线光、防静电、环保等物理特性。适合应用于家庭影院，商务办公会议、学校、KTV等场所。具有较强的色彩还原性、视场角大、幕面平整度高等优点。使用寿命长，是超短焦投影机的经济型幕布首选。

适用环境：弱灯光或暗光（50Lx）环境下使用

适用场所：商务、学校、高端影院、家庭影院、办公会议、KTV等

适配投影机：长焦投影机、

Fabric Specs

MW is formed by compounding of two kinds of benign PVC. Black PVC is mainly used for light resistance (to prevent light transmission). The surface of white PVC is compressed into special lines with good diffuse reflection effect. Both white PVC and black PVC have good ductility, resilience, weather resistance, flame retardant, moisture resistance, mildew resistance, ultraviolet light resistance, electrostatic resistance, environmental protection and other physical properties. It has the advantages of strong color reduction, large field of view and high smoothness of screen.

Applicable Products:Tab Tension Screen(TB、TJ) , In-ceiling Screen (TR) ,Quick fold screen(Q series),

                                     Fixed frame screen( FP , FZ , FC)

Applicable Places: Commercial, education, high-end cinema, home theater, conference, KTV, etc.

Matched Projector:  long throw projector

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface

高增益金属抗光幕-8K       ｜ 8K Ambient light rejection Screen Fabric

幕布特点

8K抗光幕是一种新型的投影用抗光光电复合材料，是在PVC中均匀加入纳米光电反光材料，经过一系列特殊工艺处理加工而成。在入射光的照射下，激发纳米光电材料产生倍增益光发射，从而产生更高增益。其既有比金属3D幕更强的立体层次感，又有比灰幕更高的增益效果，还有良好的抗光性能。是集众多传统幕布材料的优点于一身的高科技材料。具有高增益、视场角大、高平整度、抗光性能佳、画面立体层次感强、画质更细腻、对比度更佳、色彩更鲜艳、同时还兼具良好的抗紫外线光等特性。搭配4K、8K投影机，其能呈现出无与伦比的精彩投影效果，能带给观众一个美轮美奂的色彩视界，让观众充分享受优质清晰画面带来的视觉盛宴。

适用环境：有灯光下的亮光（300Lx）环境下使用

适配投影机：4K、8K短焦、长焦投影机（投射比 ＞0.4）

适用场所：商务、学校、高端影院、家庭影院、办公会议、KTV等

幕布性能

8K is a new kind of anti-light photoelectric composite material used for projection. It is made by adding NANO photoelectric reflective material uniformly into PVC and through a series of special processes. It has high gain, large field Angle, high flatness, good anti-light performance, 3D sense of the picture, more exquisite picture quality, better contrast, more vivid colors, and also has good anti-ultraviolet light characteristics. It’s a collection of traditional fabric in the advantages of a high-tech materials. Matching with 4K and 8K projectors, it can present an incomparable wonderful projection effect, bring the audience a gorgeous color horizon, and let the audience fully enjoy the visual feast brought by high-quality and clear pictures.

Applicable Products: Tab-Tensioned Motorized Screen ( TJ ) , In-ceiling Screen (TR), Fixed Frame Screen(F Series)

Applicable environment: Use in Ambient Lighting (300Lx) environment

                                           (general residential lighting, task lighting, and accent lighting, etc)

Matched Projector: 4K/8K short throw projector, long throw projector（Projector Throw Ratio ＞0.4)

Applicable Places: Commercial, education, high-end cinema, home theater, conference, KTV, etc.

说明：

1.阻燃性按照法国NF P92-507防燃安全等级判定;

2.可清洗是指A方式：用乙醇(7%)+乙醚(3%)的混合体进行清洗幕面；  B方式：用厨房洗洁精兑水清洗。(注意:所有幕面不能用酸性洗涤剂进行幕面清洗)

 清洁步骤:

① 一般的灰尘请使用细软毛刷清洁银幕表面；

② 请使用不留棉絮的软布，沾温和肥皂水或中性洗碗精加水稀释；

③ 粗糙的毛巾或布料可能会伤害银幕表面；

④ 银幕表面有横向结构，所以清洁银幕时请左右方向擦拭；不可上下方向擦拭，也不可绕圆擦拭；

⑤ 清洁完成后，请确认银幕干燥。

警 告 !

-避免尖锐物品直接接触银幕表面，以免刺破或刮伤银幕表面。
-请勿使用丙酮、苯、酒精等有机溶剂清洁银幕，会导致银幕永久性损坏。

-请勿持久性或大力的清洁银幕，以免银幕表面刮伤。

Remarks：

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps：

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface
