详细说明

佳影弧形画框幕

联系我们
0755-27154560
收藏
产品编号 FCK9100TW
  • 产品说明
  • 产品参数



弧形画框幕

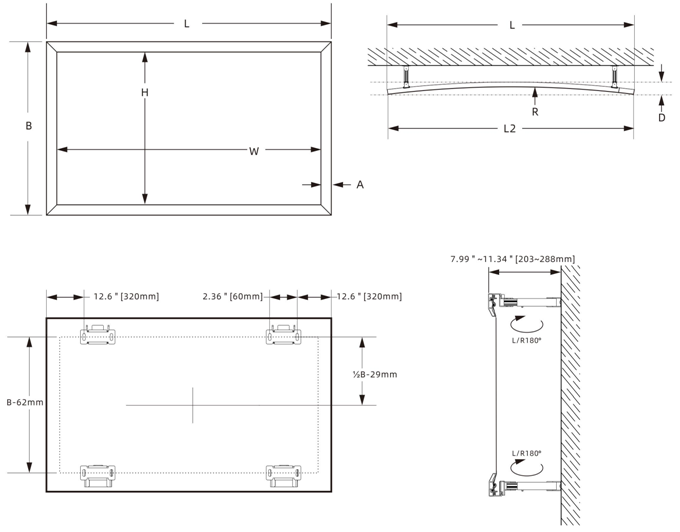

技术参数

单位:mm

银幕制式银幕规格 投影面积总长总高半径参考值弧总高包装尺寸重量备注
(WxH)LBRL2DW1xH1xL1KgLbsA
16:992〃2037x11462220132440'221490255x255x138417.0537.5890边框
100〃2214x12452398142340'239199255x255x148317.9939.66
106〃2347x13202531149840'2524105255x255x155818.6941.21
110〃2435x13702620154840'2612110255x255x160819.342.55
120〃2657x14952842167340'2833123255x255x173320.3744.91
133〃2944x16563130183440'3121140255x255x189423.5051.81
150〃3320x18683509204640'3499166255x255x210624.0853.09
160〃3542x19923729217040'3718183255x255x223025.3755.94
180〃3985x22424173242040'4160219255x255x248028.0361.80
200〃4428x24904617266840'4603259255x255x272830.7867.86
220〃4870x27395060291740'5045304255x255x297733.6374.14
250〃5534x31135725329140'5708379255x255x335138.0983.98
16:1092〃1982x12392165141740'215988255x255x147717.237.92
100〃2154x13462338152440'233196255x255x158418.4040.56
106〃2283x14272468160540'2460102255x255x16651941.89
110〃2370x14802554165840'2546107255x255x171819.6243.25
120〃2585x16162770179440'2762118255x255x185420.8746.01
133〃2865x17903050196840'3041135255x255x202821.8048.06
150〃3230x20203417219840'3407160255x255x225824.7454.55
160〃3446x21543633233240'3622175255x255x239226.0957.51
180〃3877x24234065260140'4053210255x255x266128.8563.60
200〃4308x26934497287140'4483248255x255x293131.7269.93
220〃4740x29634929314140'4913291255x255x320134.7076.49
250〃5385x33665575354440'5558361255x255x360439.3486.73
2.35:196〃2244x9552428113340'2421100255x255x119316.6536.70
100〃2337x9942522117240'2514105255x255x12321737.48
106〃2478x10542662123240'2654112255x255x129217.8839.42
119〃2781x11832967136140'2958130255x255x142118.5040.79
126〃2945x12533131143140'3121140255x255x149119.1242.15
133〃3108x13233295150140'3285151255x255x156120.6545.53
150〃3506x14923693167040'3682180255x255x173022.6549.93
159〃3716x15813904175940'3892196255x255x181924.3553.68
180〃4207x17904395196840'4382239255x255x202826.2657.88
200〃4674x19894864216740'4849283255x255x222728.7663.40
220〃5142x21885332236640'5316333255x255x242631.3569.11
240〃5610x23875800256540'5782388255x255x262534.0275.01
250〃5843x24866034266440'6016417255x255x272435.3978.02

银幕长度计算公式:L=W+188mm

包装长度计算公式:L1=W+238mm

包装体积计算公式:V=0.065x(H+238/1000)m3

说明:

1、投影面积的理论尺寸与实际尺寸允许误差±5mm,实物尺寸与表中尺寸允许误差±3mm,请以实物为准

2、实际重量与表中重量允许误差±1kg/2.2Lbs


以上参数仅供参考,如有变动恕不另行通知,请以实际尺寸为准。
