拉线电动天花隐藏幕

联系我们
0755-27154560
收藏
产品编号 TR9100TWR
  • 产品说明
  • 产品参数


天花隐藏拉线电动幕

技术参数

单位:mm

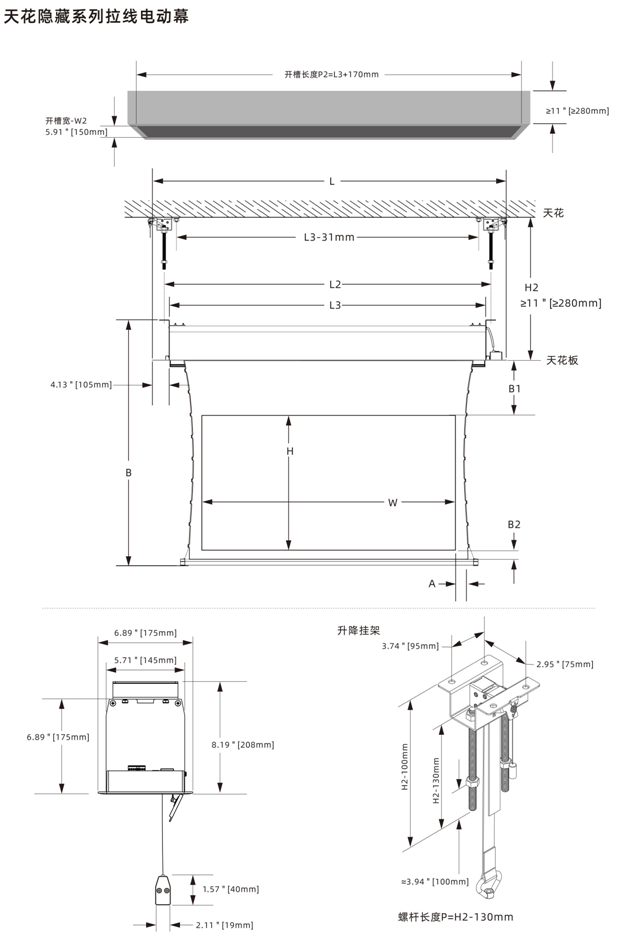

银幕制式规格投影面积黑边总长总高外壳开槽尺寸包装尺寸重量备注
(WxH)上B1下B2左右ALBL3长P2x宽W2W1xH1xL1KgLbs
16:0992〃2037x114640050602866184426672837x150235x235x297243.7696.48L=W+829mm                     L1=W+935mm                      V=0.0552x(W+935/1000)m3
100〃2214x124540050603043194328443014x150235x235x314945.45100.20
106〃2347x132040050603176201829773147x150235x235x328246.70102.96
110〃2435x137040050603264206830653235x150235x235x337047.57104.88
120〃2657x149540050603486219332873457x150235x235x359249.70109.57
133〃2944x165640050603773235435743744x150235x235x387952.44115.61
150〃3320x186840050604199256640004170x150235x235x430556.04123.55

 L=W+879mm                    L1=W+985mm

V=0.0552x(W+985/1000)m3

160〃3542x199240050604421269042224392x150235x235x452758.15128.20
180〃3985x224140050604864293946654835x150235x235x497062.40137.57
16:1092〃1982x123940050602811193726122837x150235x235x291743.3195.48L=W+829mm                      L1=W+935mm                    V=0.0552x(W+935/1000)m3
100〃2154x134640050602983204427842954x150235x235x308945.0099.21
106〃2283x142740050603112212529133083x150235x235x321846.27102.01
110〃2370x148040050603199217830003170x150235x235x330547.11103.86
120〃2585x161640050603414231432153385x150235x235x352049.23108.54
133〃2865x179040050603694248834953665x150235x235x380052.00114.64
150〃3230x202040050604109271839104080x150235x235x421555.60122.58L=W+879mm                  L1=W+985mm                     V=0.0552x(W+985/1000)m3
160〃3446x215440050604325285241264296x150235x235x443157.70127.21
180〃3877x242340050604756312145574727x150235x235x486261.94136.56
4:0384〃1707x128040050602536197823372507x150235x235x264240.5789.44L=W+829mm                      L1=W+935mm                     V=0.0552x(W+935/1000)m3
100〃2032x152440050602861222226622832x150235x235x296744.0097.01
120〃2438x182940050603267252730683238x150235x235x337348.19106.24
150〃3048x228640050603877298436783848x150235x235x398354.54120.24
180〃3658x274340050604487344142884458x150235x235x459360.89134.24
200〃4064x304840050604893374646944864x150235x235x499965.13143.59
2.35:196〃2244x95560050603073185328743044x150235x235x317945.45100.20L=W+829mm                         L1=W+935mm                       V=0.0552x(W+935/1000)m3
100〃2337x99560050603166189329673137x150235x235x327246.30102.08
106〃2478x105460050603307195231083278x150235x235x341347.57104.88
119〃2781x118460050603610208234113581x150235x235x371650.32110.94
126〃2945x125360050603774215135753745x150235x235x388051.80114.20

*L代表银幕总长公式;         *L1代表包装总长公式;           *V代表包装体积公式;

说明:

1、投影面积的理论尺寸与实际尺寸允许误差±5mm,实物尺寸与表中尺寸允许误差±3mm,请以实物为准

2、实际重量与表中重量允许误差±1kg/2.2Lbs

3、H1是指天花与天花板之间的高度尺寸

4、螺旋杆长度尺寸需根据H2确定,安装前需将螺杆尺寸裁剪到要求长度尺寸


以上参数仅供参考,如有变动恕不另行通知,请以实际尺寸为准。
